A must-have tool for SSOs, facility security managers, SCIF evaluators, general contractors and technical security personnel

Whether a building contractor, space owner, certifying accreditor, or independent tester, a reliable and straightforward Sound Transmission Class (STC) test and measurement kit is a necessity. Sensitive Compartmented Information Facilities (SCIFs), executive office spaces, boardrooms, sensitive information discussion spaces, industrial settings, and even many residential spaces (apartments, townhomes, condos, hotel rooms, etc.) are subject to local, state, and/or federal acoustic protection standards. As sound attenuation measures diminish due to new construction, maintenance, incidental damage, or natural degradation, many spaces require continued STC evaluation.

Are you concerned that classified or sensitive conversations may be overheard outside of the room through poorly performing doors and walls? Are you in compliance with the acoustic protection requirements outlined in Chapter 9, IC Tech Spec for ICD/ICS 705?

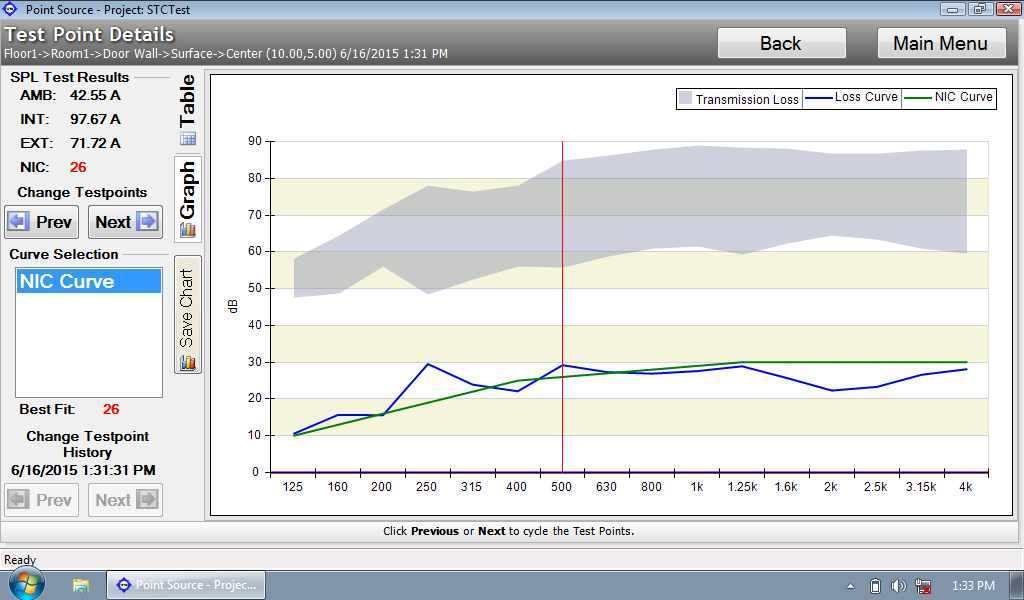

Transformational Security’s Field Sound Transmission Class (STC) Test Kit is a 100% turnkey solution for testing any area to determine the field STC rating of a wall, door, partition, or structure. Featuring our PointSource software, developed for single- and multi-point field STC testing, this cost-effective test and measurement kit steps you through the process to automatically calculate transmission loss through barriers by launching a simple-to-use software application. PointSource communicates directly with and controls a NIST-certified Sound Level Meter and Class 1 microphone and a new, specially modified 2000 W peak loudspeaker. The speaker driver incorporates the high-output 8” woofer and 1.75” compression driver into a compact common-magnet design capable of providing over 125 dB SPL with less than 1% THD. The system performs a series of guided tests using precise distances and SPL amplitude measurements. The unit uses test results and performs various calculations to derive an STC and NIC values that can be saved and/or printed. The software is simple to use yet flexible enough to conduct multiple tests in a single room to complete full 3D testing of the space. With over 10 years of delivering Field STC kits, trust your results with a certified industry partner.

Select Features

• Evaluate a door, wall, or room in minutes
• Easy to set up and tear down
• One-person, easy-to-use operation
• Automated STC & NIC calculation
• Ruggedized travel cases, less than 50 lb each
• Periodic NIST calibration available
• Report builder

Kit Contents
